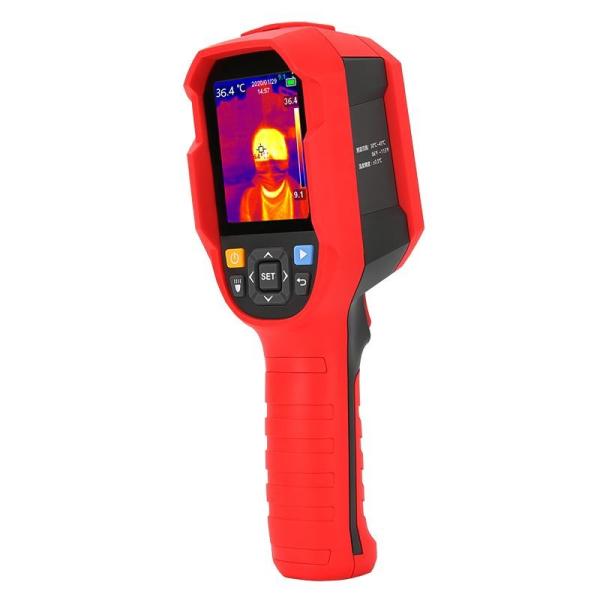

    Fda Approved Wireless Handheld Infrared Imaging System UFPA Sensor

    Ask Lasest Price
    Brand Name : Granding
    Model Number : UTi260B
    Certification : FCC
    Price : Negotiation
    Payment Terms : T/T in advance, Western Union, PayPal
    Supply Ability : 5,000pcs per month
    Delivery Time : 3 working days after received your payment
    • Product Details
    • Company Profile

    Fda Approved Wireless Handheld Infrared Imaging System UFPA Sensor


    Product Description



    Real-time temperature image transmission in the visible light photograph


    Model: UTi260B
    Brand: GRANDING

    Product Description:

    It is an Infrared thermal imaging temperature measurement camera. It integrates surface temperature measurement and real-time thermal images. The central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object. This measurement camera is visible light-based. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report for print.

    UTi260B is an infrared thermal imager with a visible light camera that combines surface temperature measurement and real-time thermal image. It also supports the real-time image transmission function. A traditional infrared thermometer can only measure temperature and needs to measure each accessory one by one. Compared with a traditional infrared thermometer, UTi260B can measure multiple temperatures of accessories once and potential problems can be clearly displayed on the screen. It also has a wide range of measurement and photography functions to work in a variety of shooting environments. For example, the built-in high brightness lamp allows you to easily find the tested object in a dark environment. This product adopts a new generation of sensor modules to ensure excellent infrared resolution and multiple color plate mode.

    Fda Approved Wireless Handheld Infrared Imaging System UFPA Sensor

    Features


    • Real-time image transmission
    • Visible Light Camera
    • UFPA Sensor
    • High/Low-Temperature Measurement
    • High Image Visibility
    • Adjustable Emissivity
    • Storage Card
    • Temperature Range
    • Thermal Resolution
    • High Temperature Alarm
    • Type-C USB Port for Charging and Data Transmission
    • Flashlight
    • PC Software for Image Analysis


    Fda Approved Wireless Handheld Infrared Imaging System UFPA Sensor

    Product Parameters


    SensorUFPA
    Temperature range-10*C~400°C
    Measurement resolution0.1°C
    ModeAuto gain
    Accuracy+2.0°C or +2%
    Measuring distance25cm
    Response time≤500ms (95% of reading)
    Emissivity0.01~0.99 adjustable (default: 0.95)
    IR resolution19,200 pixels (160 x 120)
    Pixel size
    17μm
    Color paletteIron red, rainbow, grayscale, red-white, blue-white
    Wavelength range8um~ 14μm
    Field of view (FOV)
    56° (H) x 42° (V)
    Spatial resolution (IFOV)11mrad

    Thermal sensitivity (NETD)
    <50mK
    Frame rate<9Hz
    Image formatBMP
    IP RatingIP65
    Display type2.8'' TFT Screen
    Drop test2m

    Detailed Photos

    Fda Approved Wireless Handheld Infrared Imaging System UFPA SensorFda Approved Wireless Handheld Infrared Imaging System UFPA SensorFda Approved Wireless Handheld Infrared Imaging System UFPA SensorFda Approved Wireless Handheld Infrared Imaging System UFPA SensorFda Approved Wireless Handheld Infrared Imaging System UFPA SensorFda Approved Wireless Handheld Infrared Imaging System UFPA Sensor

    Company Profile

    Fda Approved Wireless Handheld Infrared Imaging System UFPA Sensor

    Granding Technology is a global Biometrics & RFID products and service provider by a top China-based team.
    With a combined core of Biometric technology and great integrated ability behind us, Granding believes that our company is not just about creating the perfect final product for the client, but it is also about being part of the client's team. It is not "what can we do for you". It is "what can we do for us".

    Granding has assembled a team of specialized R&D, quickly responded to sales, the wisdom of planners, and efficient logistics, offer new technology products to customers home and abroad. With the development in the relevant business field, Granding has gained customers all over the world. They are able to distribute our products better supported by our excellent service and specialized knowledge. High quality, reasonable price, and prompt service have enabled us to create more business opportunities for our customers and bring more benefit and flexibility to end-users.

    Your security, my profession, is a way of thinking that guides us and pushes us forward. We see things from a global perspective, always striving to create and produce products of the highest quality at a reasonable price for worldwide customer satisfaction. We see a bright future fueled by the new technology generation, believe we can bring more pleasant surprises to everybody.
