Standalone Fingerprint Access Control Terminal And Time Attendance
With Multiple Alarm Outputs
Features:
1. 2-inch color display with graphical UI, easy for operation.
2. Audio-Visual indications for acceptance& rejection of
fingerprints.
3. TCP/IP or RS485 communication for various networking
environments.
4. Built- in auxiliary input with enhanced flexibility to link with
wired detector or switch.
5. Up to 15 multi-verification methods to enhance security level.
6. Standard access control features such as Time Zone, Holiday,
A&C Group , Unlock combination etc.
7. Tamper-proofs switch and multiple alarm outputs
8. Duress Alarm offers effective protection against duress by
threats.
9. Optional metal protection case for outdoor installation.
10. Multi-language customizable
Specifications
LCD Display | Access control Interface |
2 inch TFT(220*176) color Screen | Electric lock, Door sensor, Alarm, Exit button, Door bell |
Fingerprint Sensor: optical Sensor (500DPI) |
Capacity | Environment |
Fingerprint:1,500 | Operation temperature:0℃~45℃ |
Card:5,000 (EM/MF) Records:80,000 | Operation humidfity:20%~80% |
Communication | Power Supply |
TCP/IP, RS485, Wiegand out (optional Wiegand in) | DC12V/3A(optional) |
Algorithm Version | Aux. Input |
Finger VX10.0 | 1ea for linkage function |

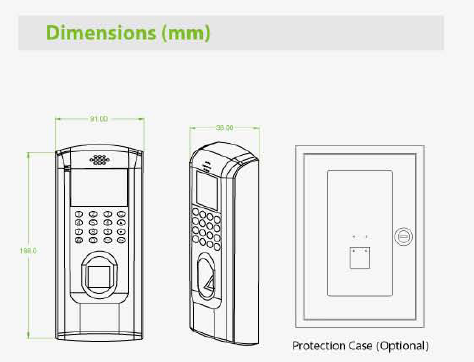

Dimension(W*H*L) | |
91*188*38mm | |
Introduction
The F03 is an IP based fingerprint terminal that works in
standalone and network modes. The 4*4 keypad and LCD display make
it easy to operate in standalone mode. In network mode, it can
connect with Access3.5 software for access control and time
attendance management.
Wiegand output enables the F03 to connect with any third party
control panel control that supports 26 bit wiegand, which a llows
security suppliers and system integrators to integrate Teco
fingerprint identification technology that is accurate, convenient
and cost-effective with their current system.
Auxiliary input interface allows F03 to connect with an external
source, for instance a smoke detector or emergency switch. Once the
linkage function is enabled through the machine menu, the device
would generate an alarm signal and open the door in case of
emergency.
